型号:LSQ-S5_LSQ-S5C推拉式液压快速接头


产品详情
 描述:

LSQ-S5/LSQ-S5C推拉式液压快速接头
 应用:LSQ-S5/LSQ-S5C系列广泛应用于各种工业用途,用于建筑设备、森林设备、农业机械及液压机具

 技术规范:

规格(英寸)1/2
额定压力(PSI)3000
额定流量(GPM)12
温度范围(标准密封圈)-20℃至+120℃
标准密封圈材料丁腈橡胶NBR



 LSQ-S5和LSQ-S5C系列接头具有以下特征:
 1、在接头被夹紧或以舱壁形式安装时,双作用套筒可以用单手操作。
 2、接头断开时,阀芯自动闭合,防止泄漏。
 3、接头连接后,阀自动开启,在额定工作范围内,始终保持流体的畅通。
 4、关键部件经过感应淬火,所以耐用性好。
  5、可靠的球锁机构将相匹配的两半部分结合在一起。
   6、母插座和公插头采用实心的棒料精密制造。
    7、本接头符合ISO5675标准。
     8、并与下列产品互换:美国派克(PARKER)4250系列、意大利快事达(FASTER)CPV-CNV系列

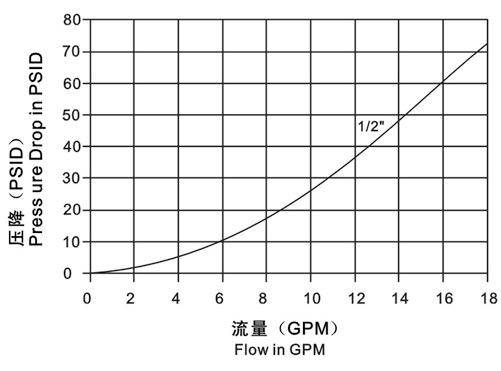

       性能:测试液体油-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
       LSQ-S5系列(1/2")

       母插座


ISOPARTNO.LS¢      DHEX1T
12.5LSQ-S5-04SF3/86638273/8BSP NPT3/8
12.5LSQ-S5-04SF1/26638271/2BSP NPT1/2
12.5LSQ-S5-04SF3/46938343/4BSP NPT3/4
12.5LSQ-S5-04SFM14663827M14*1.5
12.5LSQ-S5-04SFM16663827M16*1.5
12.5LSQ-S5-04SFM18663827M18*1.5
12.5LSQ-S5-04SFM22663827M22*1.5

公插头


ISOPARTNO.LPdCHEX2T
12.5LSQ-S5-04PF3/861.520.527273/8BSP NPT3/8
12.5LSQ-S5-04PF1/24420.527271/2BSP NPT1/2
12.5LSQ-S5-04PF3/464.520.534343/4BSP NPT3/4
12.5LSQ-S5-04PFM1461.520.52727M14*1.5
12.5LSQ-S5-04PFM1661.520.52727M16*1.5
12.5LSQ-S5-04PFM1861.520.52727M18*1.5
12.5LSQ-S5-04PFM224420.52727M22*1.5

 连接装配器

ISOPARTNO.L¢       DHEX1HEX2T
12.5LSQ-S5-04F3/8105.53827273/8BSP NPT3/8
12.5LSQ-S5-04F1/2105.53827271/2BSP NPT1/2
12.5LSQ-S5-04F3/4105.53834343/4BSP NPT3/4
12.5LSQ-S5-04FM14105.5382727M14*1.5
12.5LSQ-S5-04FM16105.5382727M16*1.5
12.5LSQ-S5-04FM18105.5382727M18*1.5
12.5LSQ-S5-04FM22105.5382727M22*1.5



 |--LSQ-S5 Socket--|

ISOPARTNO.LS¢       DHEX1AT
12.5LSQ-S5-04SM8L73.5382712M14*1.5
12.5LSQ-S5-04SM10L73.5382712M16*1.5
12.5LSQ-S5-04SM12L73.5382712M18*1.5
12.5LSQ-S5-04SM15L75.5382714M22*1.5
12.5LSQ-S5-04SM18L75.5382714M26*1.5
12.5LSQ-S5-04SM10S73.5382712M18*1.5
12.5LSQ-S5-04SM12S73.5382712M20*1.5
12.5LSQ-S5-04SM14S75.5382714M22*1.5
12.5LSQ-S5-04SM16S75.5382714M24*1.5
12.5LSQ-S5-04SM20S77.5383016M30*2

 |--LSQ-S5 Plug--|


ISOPARTNO.LPdCHEX1AT
12.5LSQ-S5-04PM8L58.520.5272712M14*1.5
12.5LSQ-S5-04PM10L58.520.5272712M16*1.5
12.5LSQ-S5-04PM12L58.520.5272712M18*1.5
12.5LSQ-S5-04PM15L60.520.5272714M22*1.5
12.5LSQ-S5-04PM18L60.520.5272714M26*1.5
12.5LSQ-S5-04PM10S58.520.5272712M18*1.5
12.5LSQ-S5-04PM12S58.520.5272712M20*1.5
12.5LSQ-S5-04PM14S60.520.5272714M22*1.5
12.5LSQ-S5-04PM16S60.520.5272714M24*1.5
12.5LSQ-S5-04PM20S62.520.5273016M30*2


 |--LSQ-S5 Coupling Fitting--|

ISOPARTNO.LDHEX1HEX2T
12.5LSQ-S5-04-8L       109.5          382727M14*1.5
12.5LSQ-S5-04-10L109.5382727M16*1.5
12.5LSQ-S5-04-12L109.5382727M18*1.5
12.5LSQ-S5-04-15L113.5382727M22*1.5
12.5LSQ-S5-04-18L113.5382727M26*1.5
12.5LSQ-S5-04-10S109.5382727M18*1.5
12.5LSQ-S5-04-12S109.5382727M20*1.5
12.5LSQ-S5-04-14S113.5382727M22*1.5
12.5LSQ-S5-04-16S113.5382727M24*1.5
12.5LSQ-S5-04-20S115.5383030M30*2

 |--LSQ-S5C Socket--|


ISOPARTNO.LPdCHEX1HEX3T
12.5LSQ-S5C-04PM8L7220.5271927M14*1.5
12.5LSQ-S5C-04PM10L7220.5272427M16*1.5
12.5LSQ-S5C-04PM12L7220.5272427M18*1.5
12.5LSQ-S5C-04PM15L7420.5272727M22*1.5
12.5LSQ-S5C-04PM18L7420.5273027M26*1.5
12.5LSQ-S5C-04PM10S7220.5272427M18*1.5
12.5LSQ-S5C-04PM12S7220.5272727M20*1.5
12.5LSQ-S5C-04PM14S7420.5272727M22*1.5
12.5LSQ-S5C-04PM16S7420.5273027M24*1.5
12.5LSQ-S5C-04PM20S8120.5273630M30*2



 |--LSQ-S5C Plug--|

ISOPARTNO.LPCHEX1HEX3T
12.5LSQ-S5C-04PM8L72271927M14*1.5
12.5LSQ-S5C-04PM10L72272427M16*1.5
12.5LSQ-S5C-04PM12L72272427M18*1.5
12.5LSQ-S5C-04PM15L74272727M22*1.5
12.5LSQ-S5C-04PM18L74273027M26*1.5
12.5LSQ-S5C-04PM10S72272427M18*1.5
12.5LSQ-S5C-04PM12S72272727M20*1.5
12.5LSQ-S5C-04PM14S74272727M22*1.5
12.5LSQ-S5C-04PM16S74273027M24*1.5
12.5LSQ-S5C-04PM20S81273630M30*2



 |--LSQ-S5C Coupling Fitting--|

ISOPART NO.L¢      DHEX1HEX2HEX3T
12.5LSQ-S5C-04-8L137.538271927M14*1.5
12.5LSQ-S5C-04-10L137.538272427M16*1.5
12.5LSQ-S5C-04-12L137.538272427M18*1.5
12.5LSQ-S5C-04-15L143.538272727M22*1.5
12.5LSQ-S5C-04-18L143.538273027M26*1.5
12.5LSQ-S5C-04-10S137.538272427M18*1.5
12.5LSQ-S5C-04-12S137.538272727M20*1.5
12.5LSQ-S5C-04-14S137.538272727M22*1.5
12.5LSQ-S5C-04-16S143.538273027M24*1.5
12.5LSQ-S5C-04-20S145.538303630M30*2
