型号：LSQ-Q2模具专用快速接头
产品详情
描述：
LSQ-Q2模具专用快速接头（中体）（铜）
→产品描述：特别为冷却系统和注射模具设计。
→技术优势：结构简单，大流量，无阀设计。
→产品应用：模具行业，冷却系统。
→互换性：派克（PARKER）MOLDMATE系列。
→工作压力：1.5Mpa
→工作温度：-15℃+150℃
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-Q2-03SM | 49 | 24 | 22 | 13 | ZG3/8 | ￠10 |
| LSQ-Q2-04SM | 49 | 24 | 22 | 14 | ZG1/2 | ￠14 |
| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| LSQ-Q2-03SH | 61 | 24 | 22 | 25 | 11 | ￠7 |
| LSQ-Q2-04SH | 61 | 24 | 22 | 25 | 13.5 | ￠9.5 |

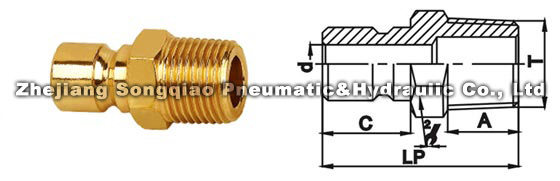

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-Q2-03PM | 36 | 16.2 | 17 | 13 | ZG3/8 | ￠7 |
| LSQ-Q2-04PM | 38 | 16.2 | 22 | 16 | ZG1/2 | ￠7 |
| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-Q2-03PM | 75 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 100 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 125 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 150 | 16.2 | 17 | ZG3/8 | ￠7 |
| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-Q2-04PM | 75 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 100 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 125 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 150 | 16.2 | 22 | ZG1/2 | ￠7 |
