型号：LSQ-TG COLSE TYPE HYDRAULIC QUICK COUPLING
产品详情
Descripton:
LSQ-TG close type hydraulic quick coupling(steel)
The LSQ-TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
LSQ-TG close type hydraulic quick coupling(steel)
The LSQ-TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 3/4 | 1 |
| Rated Pressure(PSI) | 3000 | 3000 |
| Rated Flow(GPM) | 28 | 50 |
| Temperature Range(std seals) | -20℃ to +120℃ | |
| Standard seal material | NBR | |
| PARTNO. | T | HEX1 | HEX2 | ￠D | L | LS | LP |
| LSQ-TG-06 | G3/4 | S38 | S35 | 51 | 115 | 85 | 57 |
| LSQ-TG-08 | G1" | S44.5 | S41 | 57 | 130.5 | 98.5 | 65 |
LSQ-TG Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-TG series conforms to the standard of ISO 7241-A..
7.Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

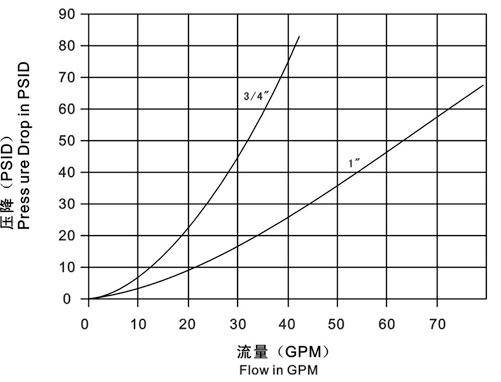

Performance: Test Fluid:Oil-200SUS, 1GPM=3.78L/Min,1PSID=0.0069MPa.
LSQ-TG Series(3/4",1")

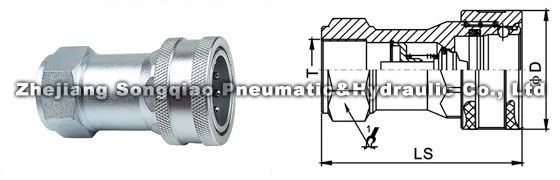

Socket
| ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
| 20 | LSQ-TG-06SF | 85 | 49 | S38 | 19 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08SF | 98.5 | 57 | S44.5 | 23 | G1" NPT1" |

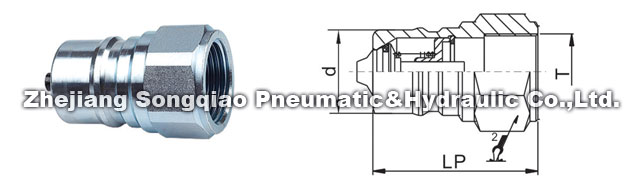

Plug
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 20 | LSQ-TG-06PF | 57 | 29 | 29 | S35 | 19 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08PF | 65 | 34.3 | 34.3 | S41 | 23 | G1" NPT1" |

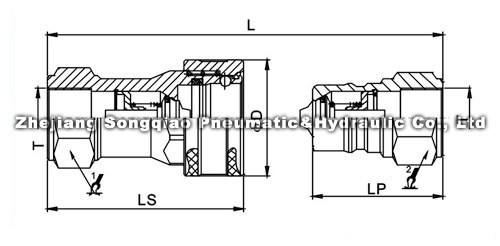

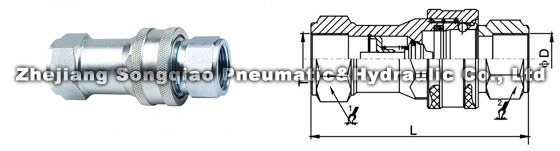

Coupling Fitting
| ISO | PARTNO. | LP | D | HEX1 | HEX2 | T |
| 20 | LSQ-TG-06 | 115 | 49 | S38 | S35 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08 | 130.5 | 57 | S44.5 | S41 | G1" NPT1" |
