型号：LSQ-550 Pneumatic Quick Coupling
产品详情
Descripton:
Features: Valid diameter 11mm, ISO 6150B standard
Advantages: large flow valve, single hand operation.
Application: pneumatic tools, automotive, machinery equipment.
Interchangeability: CEJN 550 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃

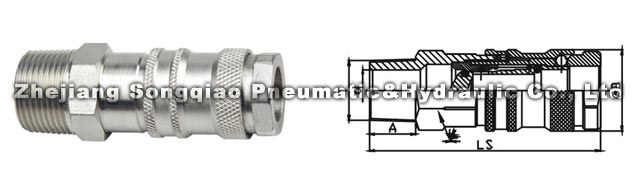

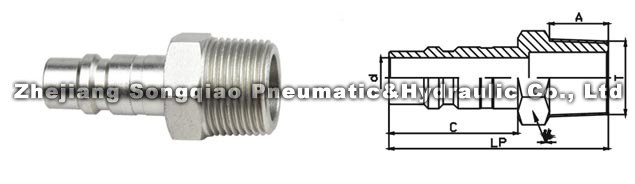

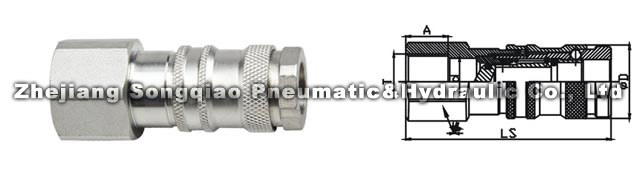

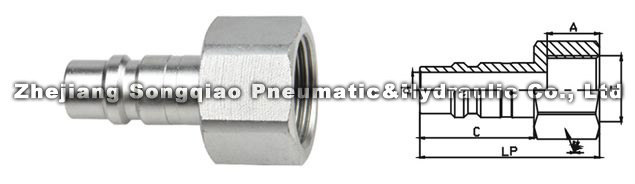

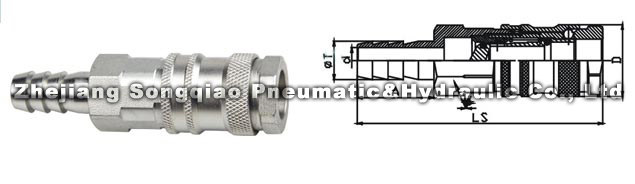

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-550-04SM | 79.9 | 28.1 | 24 | 16 | ZG1/2 | ￠14 |
| LSQ-550-06SM | 81.8 | 28.1 | 27 | 18 | ZG3/4 | ￠18 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-550-04PM | 59.5 | 35 | 22 | 16 | ZG1/2 | ￠11 |
| LSQ-550-06PM | 63 | 35 | 27 | 18 | ZG3/4 | ￠11 |
| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-550-04SF | 78.3 | 28.1 | 27 | 16 | G1/2 | ￠17.9 |
| LSQ-550-06SF | 79.8 | 28.1 | 32 | 18 | G3/4 | ￠17.9 |
| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-550-04PF | 55 | 35 | 27 | 16 | G1/2 | ￠11 |
| LSQ-550-06PF | 57 | 35 | 32 | 18 | G3/4 | ￠11 |
| PART NO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-550-04SH | 96.3 | 28.1 | 24 | 30 | 15 | ￠10 |
| LSQ-550-06SH | 96.3 | 28.1 | 24 | 30 | 20.5 | ￠15 |

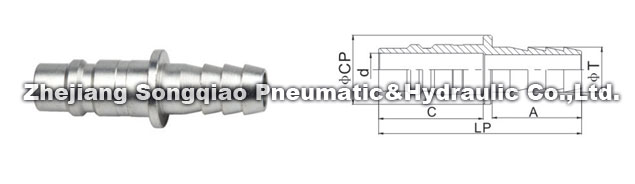

| PART NO. | LP | C | ￠CP | A | ￠T | d |
| LSQ-550-04PH | 68 | 35 | 23 | 30 | 15 | ￠11 |
| LSQ-550-06PH | 68 | 35 | 23 | 30 | 20.6 | ￠11 |
