型号：KZE-BE THREAD LOCKED TYPE HYDRAULIC QUICK COUPLING(STEEL)
产品详情
Screw to connect couplings for oil & gas application, market interchange. Standard screw-to-connect coupling suitable for Oil & Gas applications.
Robust sleeve design, poppet valve and ACME connection thread.
Machined from solid steel barstock for durability.
Tighten the screw to connect, loosen the screw to disconnect, it can be connected with residual pressure.
New chrome plating treatment provides advanced anti-rust performance.
A threaded valve retainer provides a valve stop that assures positive valve alignment.
Compatible with FASTER OGV series, STUCCHI
VOFseries.
| Size(in) | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure(PSI) | 5000 | 5000 | 5000 | 5000 | 5000 |

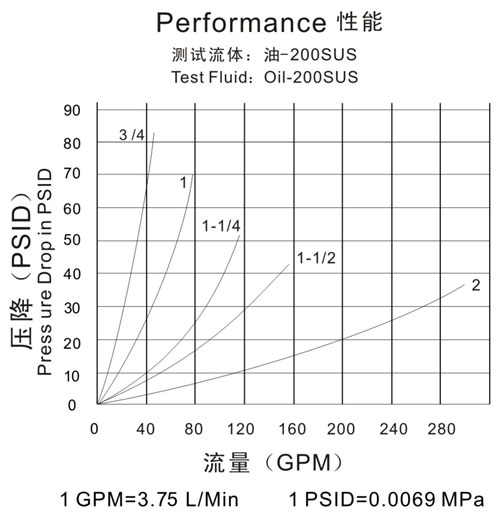

| Rated Flow(GPM) | 50 | 74 | 127 | 185 | 264 |
| Temperature Range | -30℃ to +120℃ | ||||
| Standard seal material | NBR | ||||

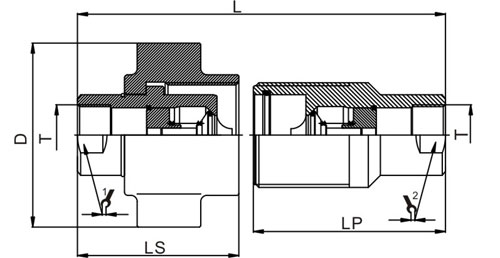

| PARTNO. | T | D | HEX1 | HEX2 | L | LS | LP |
| KZE-BE-06 | G3/4" | 77 | S31.8对边 | S31.8对边 | 123.5 | 71.8 | 83.2 |
| KZE-BE-08 | G1" | 105 | S41.3对边 | S41.3对边 | 153 | 87.3 | 105.8 |
| KZE-BE-10 | G1-1/4" | 116 | S50.8对边 | S50.8对边 | 197.8 | 113 | 136.8 |
| KZE-BE-12 | G1-1/2" | 145 | S57对边 | S57对边 | 219.6 | 127 | 151.2 |
| KZE-BE-16 | G2 | 170 | S74对边 | S74对边 | 255 | 154.5 | 179 |
